Print Tips


Types of 3D Printer bed/plate

3D Printer bed/plate has to have a strong adhesion while printing but has to come apart well when printing is completed.

  • 1. Plastic

    1. Plastic

    A Bed type in early days of 3D printers. It warps and crooks which makes printing difficult if it is used for a long period of time.

  • Because the adhesion is too strong, people used the blue tape on top of it.

  • 2. Glass

    2. Glass

    It's the most popular and easy solution because it provides an excellent smooth surface but has less adhesion.

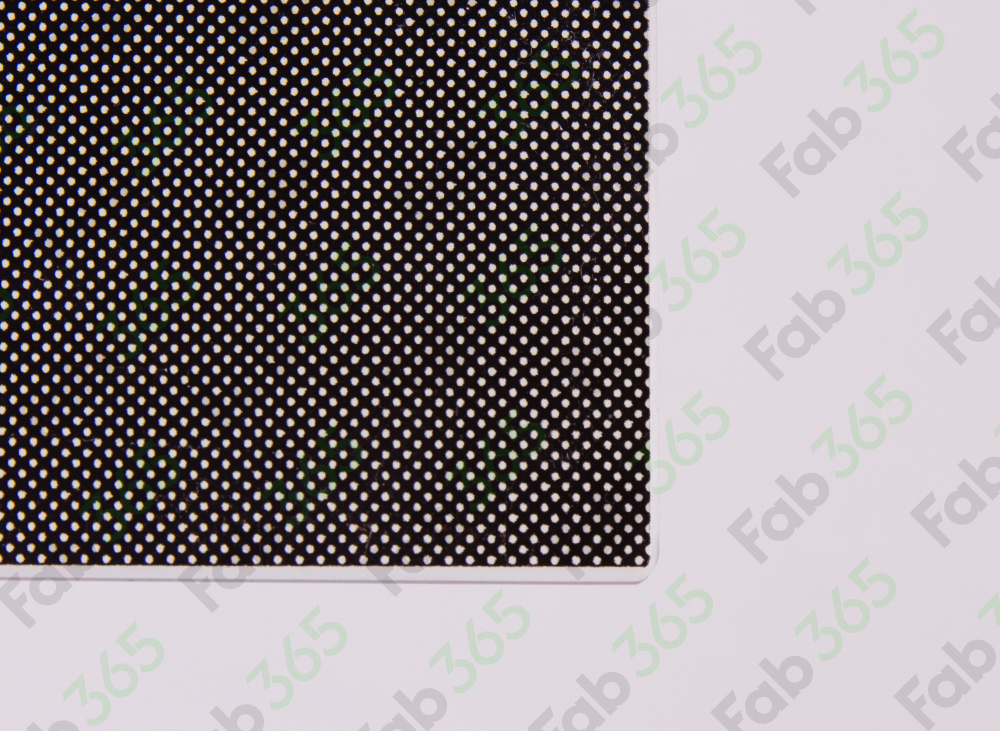

  • 3. Carbon coated glass

    3. Carbon coated glass

    This is a bed that supplements the weakness of glass.

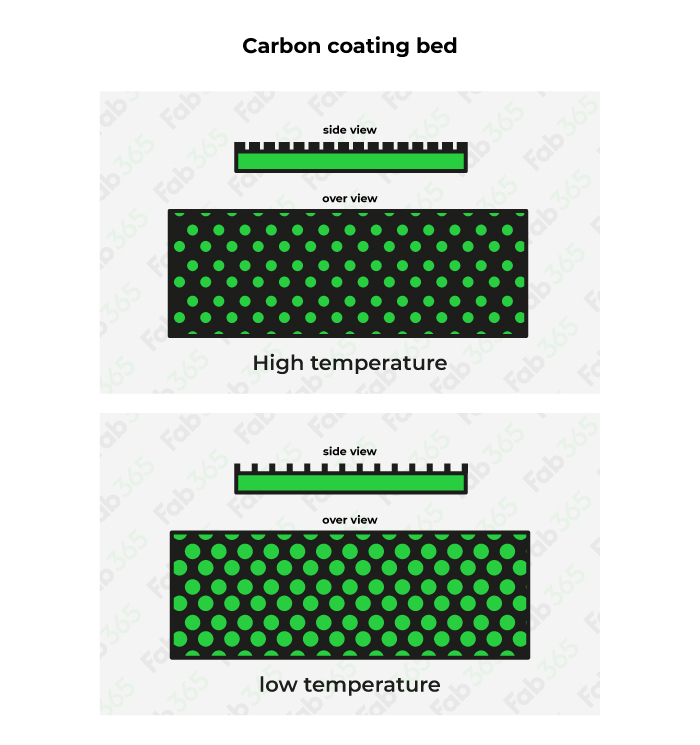

  • If the temperature rises, the pattern of carbon expands that holds the printout. If the temperature lowers, it contracts and releases the printout.

  • You have to wait for a long time because you can detach the printout after the temperature lowers completely. You have to be cautious when using a metal tool such as a chisel, which might damage the bed.

  • 4. Magnetic rubber bed

    4. Magnetic rubber bed

    It is hard to level the bed evenly because it’s not completely flat and the level of adhesion strength drops significantly if the amount of printout increases.

  • 5. PEI/PEX coated bed

    5. PEI/PEX coated bed

    A bed coated with Polyethylenimine on a metal plate with high elasticity. It is highly flat and adhesive that you can detach the print-out by bending it instantly after printing.

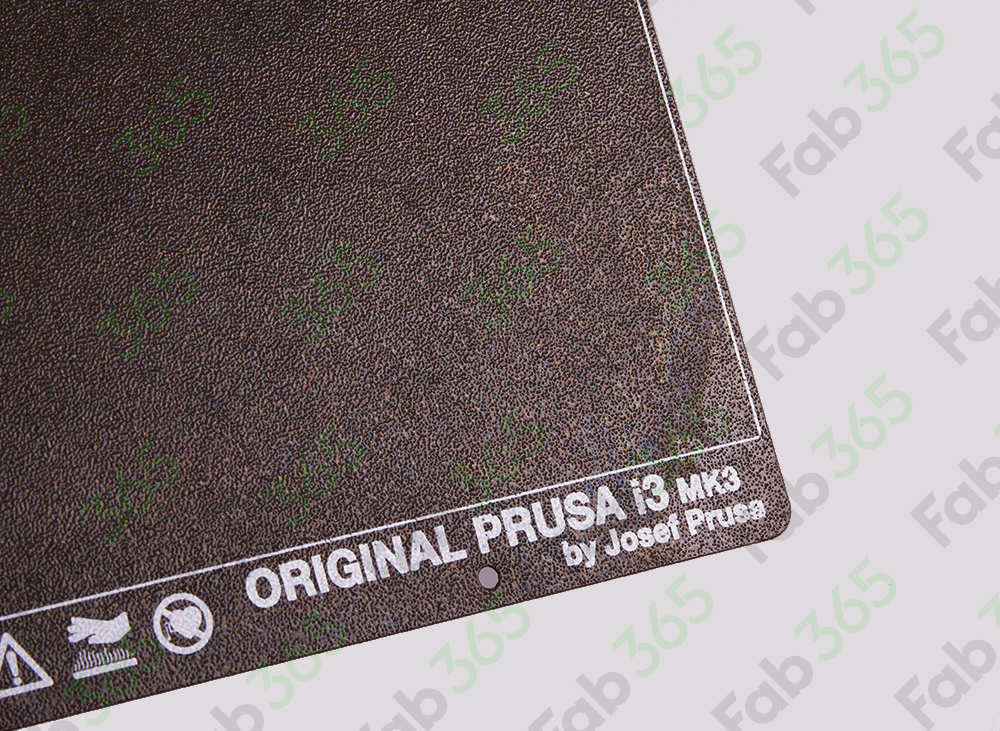

  • 6. Powder coated bed

    6. Powder coated bed

    As a bed coated with a special material called Ultem, it creates a unique texture on the bottom of the printout’s surface. You can get a surface almost the same as the plastic product made from the factory.

  • Since adhesion is weak, you have to control the height of the nozzle precisely in order to get good results.
